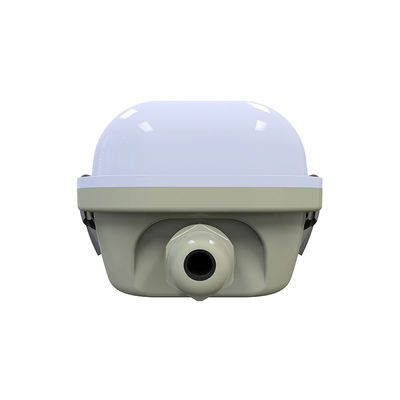

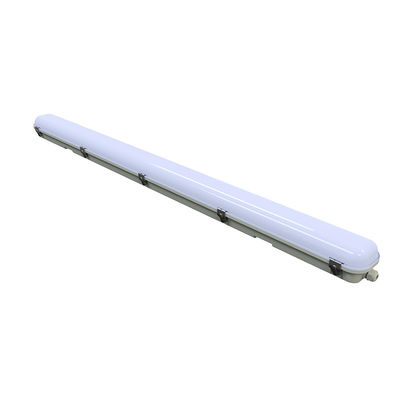

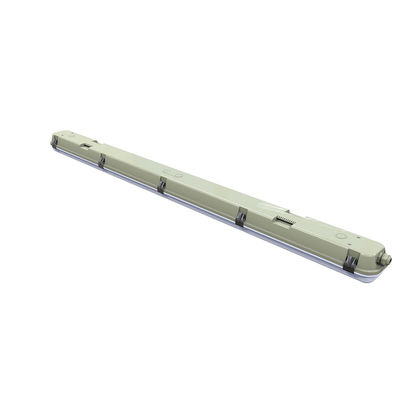

Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical

Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical
Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical

Large Image :  Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical

Product Details:
Place of Origin: China
Brand Name: CADYSUN
Certification: CE, CB, GS, TUV
Model Number: CWP-ZDL
Payment & Shipping Terms:
Minimum Order Quantity: 300PCS
Price: Depend on your quantity
Packaging Details: Neutral Yellow Box
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 300,000 pcs/each month

Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical

Description
IP Rating: IP65 Input Voltage(v): 220-240V 50HZ
Certification: CE,CB,GS,TUV Working Lifetime(hour): 50000hours
Impact Protection: IK08 Warranty: 5years
Lamp Luminous Efficiency(lm/w): 120lm/w Color Temperature(cct): 3000K,4000k,6500K
Beam Angle(°): 120 Application: Workshop,warehouse,cold Store,shopping Mall,parking-lot
Cri (ra>): 80 Lamp Body Material: PC
Light Source: LED
Highlight:

Workshop Slim LED Tube Light

,

120LM/W Slim LED Tube Light

,

Anti Corrosion LED Light Tube Light

IP65 Water-Proof LED Light IK08 Protection Class I Grey Color PC Body Lamp Stainless And PC Clip Surface Mounted



◆Product introduction:

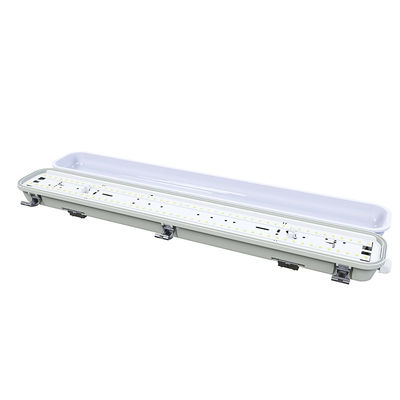

This is a new multi-functional LED tri-proof light. The product not only can be installed with module light strips as professional LED lamp, but also can be installed with LED tubes as replacement for regular fluorescent lamp. Its light is uniform and without bright spot, mainly for replacement for regular tri-proof lamps, which are more economical and effortless.



The type of clips can be divided into lock-screw clip (for isolated driver and non-isolated driver) and regular clip (for isolated driver). According to power nature, which can be divided into is olated and non-isolated (need lock-screw clips). According to type of light sources, which can be divided into LED module lamps, LED light tube lamp and regular fluorescent lamps.







Workshop 120LM/W Slim LED Tube Light Anti Corrosion Practical 0







ADVANTAGE





  • Housing and cover are made of PC.
  • Three Color temperature changeable function:3000~6500K changeable by toggle switch.
  • Uniform light, without dark area.
  • Lamp switch on speed tw0.5s, Energy saving and environmental friendly.
  • Diversified product structure for customers to choose.
  • The product has a detachable and self-locking buckle for easy installation of isolated and non-isolated power supplies.







     SPECIFICATION



Model Voltage Frequency Power Luminous flux Dimensions size (UW/H) Installation size (LF) Item/Box Package Size
CWP118ZDL 220-240V 50-60Hz 13W 15601m 653x72x73mm 380mm 12 673x321x258mm
CWP136ZDL 220-240V 50-60Hz 25W 30001m 1253x72x73mm 800mm 9 1273x244x258mm
CWP158ZDL 220-240V 50-60Hz 30W 36001m 1553x72x73mm 1000mm 9 1573x244x258mm
CWP218ZDL 220-240V 50-60Hz 25W 30001m 653x102x73mm 380mm 9 673x331x258mm
CWP236ZDL 220-240V 50-60Hz 50W 60001m 1253x102x73mm 800mm 9 1273x331x258mm
CWP258ZDL 220-240V 50-60Hz 60W 72001m 1553x102x73mm 1000mm 9 1573x331x258mm
