Product Details:
|
IP Rating: | IP65 | Input Voltage(v): | 220-240V 50HZ |
---|---|---|---|
Certification: | CE,CB,GS,TUV | Working Lifetime(hour): | 50000hours |
Impact Protection: | IK08 | Warranty: | 5years |
Lamp Luminous Efficiency(lm/w): | 130lm/w | Color Temperature(cct): | 3000K,4000k,6500K |
Beam Angle(°): | 120 | Application: | Workshop,warehouse,cold Store,shopping Mall,parking-lot |
Cri (ra>): | 80 | Lamp Body Material: | PC |
Light Source: | LED | ||
Highlight: | Stable IP65 Waterproof LED Light,Multi Scene IP65 Waterproof LED Light,6500K IP65 Waterproof Light |

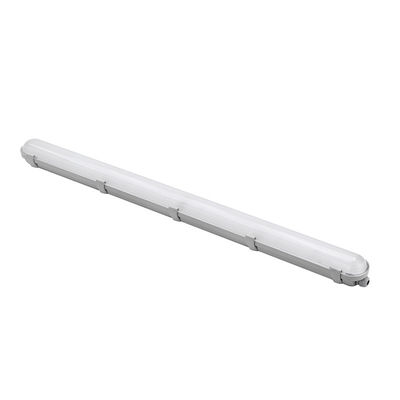

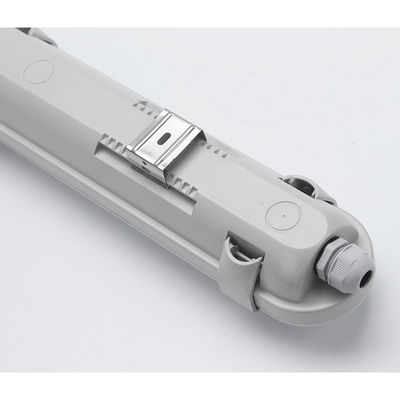

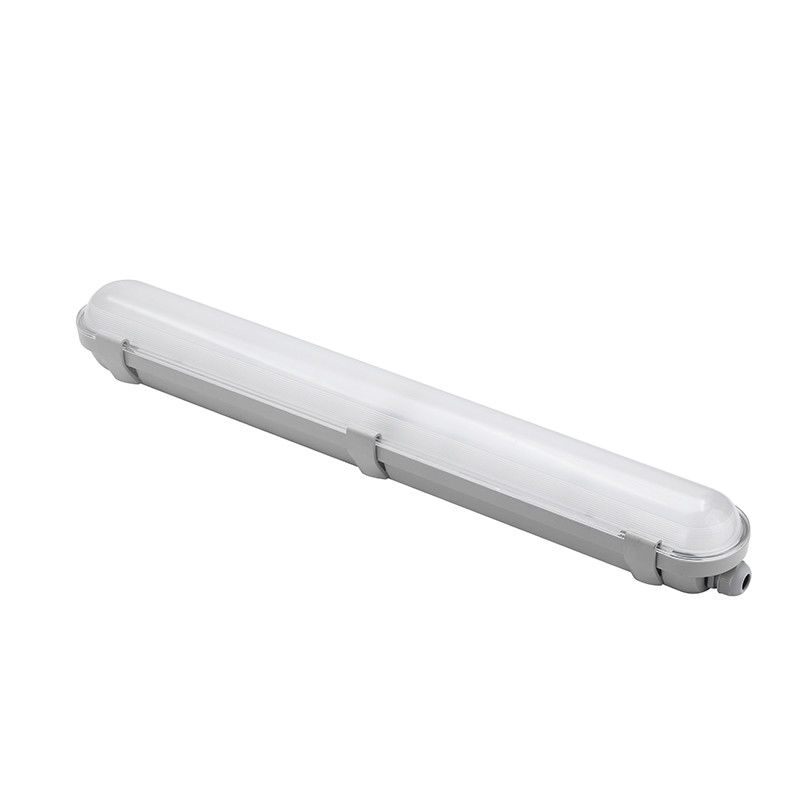

IP65 Water-Proof LED Light PC Diffuser IK08 Protection Class I Grey Color PC Body Lamp Stainless And PC Clip
◆Product introduction:

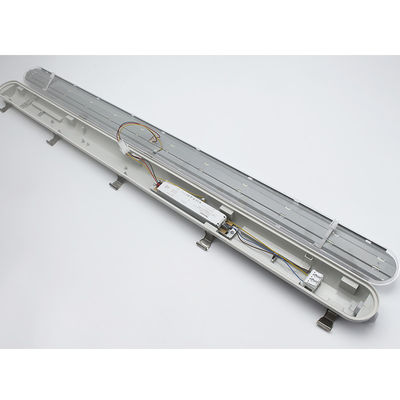

UGR-ZA LED tri-proof light adopts LED front to emit light directly, the light color is uniform and soft, adopts high-performance constant current drive power, and has high conversion efficiency; the surface shell is injection-molded, and the appearance is simple. The reflector is integrated with the lampshade, the product is easy to use, and can be installed by hoisting and ceiling. The input voltage of the lamps is 220~240V, which can be used in most countries and regions in the world.
ADVANTAGE
SPECIFICATION
ITEM NO.: | UGR106ZA | UGR112ZA | UGR115ZA | UGR118ZA | UGR206ZA | UGR212ZA | UGR215ZA | UGR218ZA |
Q’TY: | 12 | 8 | 6 | 6 | 12 | 6 | 6 | 6 |
N.W.: | 12.2 KG | 10.1 KG | 9.5 KG | 14 KG | 14.2 KG | 11.1 KG | 14KG | 14KG |
G.W.: | 14.3 KG | 12.67 KG | 11.8 KG | 16.3 KG | 16.3 KG | 13 KG | 16.3 KG | 16.3KG |
Package Size: |
620*350*225mm |
1220*165*305mm |
1580*165*230mm |
1580*254*230mm |
620*470*225mm |
1280*254*230mm |
1580*254*230mm | 1580*254*230mm |
Package Volume: | 0.0488m³ | 0.0614m³ | 0.0599m³ | 0.0923m³ | 0.0655m³ | 0.0747m³ | 0.0923 m³ |
0.0923m³ |
innex box size: | 615*85*78mm |
1215*85*78mm |
1515*85*78mm | 1815*85*78mm | 615*120*78mm | 1215*120*78mm | 1515*120*78mm | 1815*120*78mm |
innex box volume: | 0.004m³ | 0.008m³ | 0.01m³ | 0.012m³ | 0.005m³ | 0.011m³ | 0.014 m³ | 0.0169m³ |
