Product Details:
|
Protection: | IP20 | Input Voltage(v): | 220-240V 50/60HZ |
---|---|---|---|
Certification: | CE,CB,GS,TUV | Working Lifetime(hour): | 50000hours |
Impact Protection: | IK08 | Warranty: | 5years |
Lamp Luminous Efficiency(lm/w): | 100lm/w | Color Temperature(cct): | 3000K,4000k,6500K |
Beam Angle(°): | 120 | Application: | Workshop,warehouse,cold Store,shopping Mall,parking-lot |
Lamp Body Material: | Extrued PC | Working Temperature(℃): | -20 - 40 |
Power Factor: | More Than 0.9 | ||
Highlight: | Multi Scene Linear Strip Light LED,IP20 Linear Strip Light LED,Flicker Free LED Strip Linear Lighting |

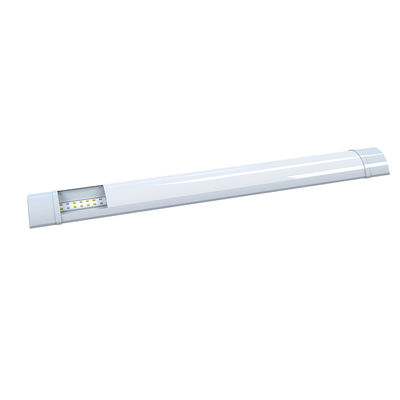

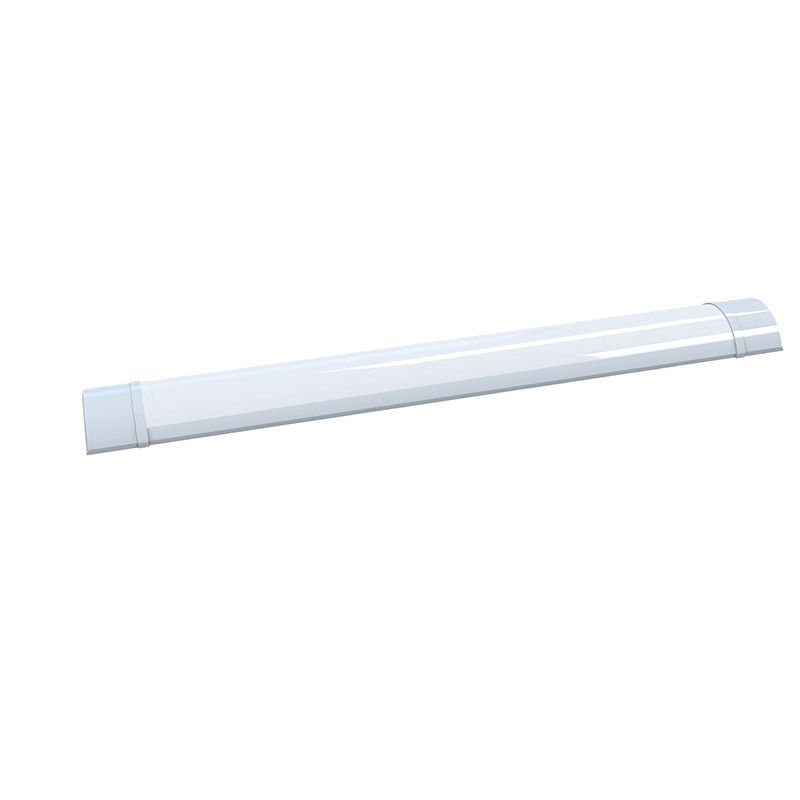

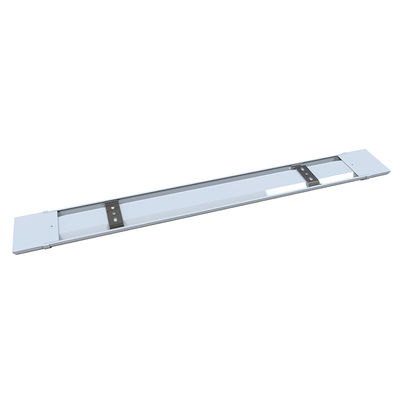

LED Tri-Proof Light IP20 Rating Lamp IK08 Protection II Class White Color Extrued PC Body Opacity PC End Cap
◆Product introduction:
CWP-SM This is a kind of two-color extruded tri-proof lamp. The body is made of anti-UVPC material and the two ends of the lamp are connected and sealed using the latest thermal induction technology to ensure the firmness of the lamp body and end caps.
This product reduces power and improves luminous efficiency under the premise of meeting the same brightness, in order to reduce energy consumption and reduce the impact of the lamp's own heat on the life performance of its electrical parts; Available in 0.3m, 0.6mand 1.2m sizes, to suit different applications.
ADVANTAGE
SPECIFICATION
ITEM NO.: | CWP103SM | CWP106SM | CWP112SM | CWP115SM |
Q’TY: | 48 PCS | 40 PCS | 36 PCS | 36 PCS |
Package Size: | 673*259*268mm | 644x341x330mm | 1244*341*299mm | 1544*341*299mm |
Package Volume: | 0.0467m² | 0.0724m² | 0.1268m² | 0.1574m² |
Installation size: | 150-200mm | 300-450mm | 600-750mm | 750-900mm |
